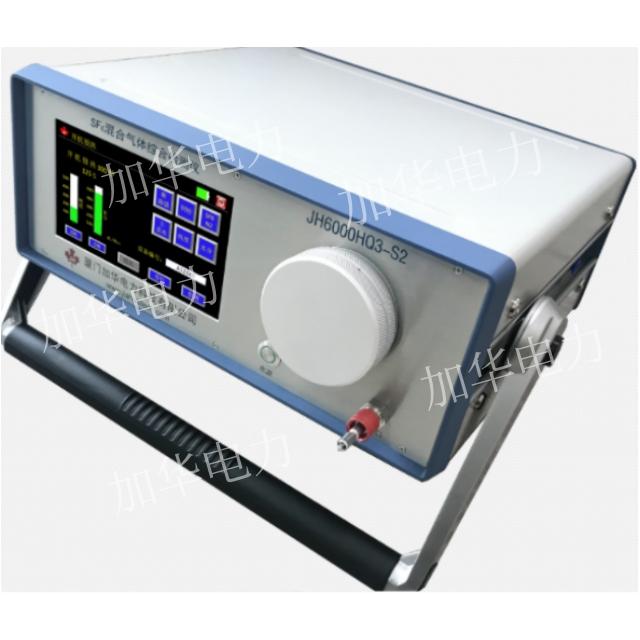

JH6000HQ3-S series SF6 mixed gas comprehensive detector
?
recommendation index：
Detection function, high accuracy, good stability
Portable design, fast testing, low air consumption, environmentally friendly
Automatic flow control, efficient and accurate, effectively reducing sample gas emissions
Intelligent integration, multi-purpose machine
Detect the mixing ratio and gas humidity of the mixed gas
Mixed gas type: SF6/N2 or SF6/CF4
name | component | parameter | |
minimum detectable quantity | SF6 | ≤0.01% | |
N2 | ≤0.01% | ||
CF4 | ≤0.01% | ||
O2 | ≤0.001% | ||
dew point | ≤0.1℃ | ||
precision | SF6 | pure gas | ≤±0.1%(g/g) |
air mix | ≤±0.5% | ||
N2 | ≤±0.5% | ||
CF4 | ≤±0.5% | ||
O2 | ≤±0.05% | ||
Dew point: resistance/mirror | ≤±1℃/0.3℃ | ||
repeatability | SF6 | pure gas | ≤0.05%(g/g，RSD) |
air mix | ≤1.0%(RSD) | ||
O2 | ≤1.0%（RSD） | ||
N2 | ≤1.0%（RSD） | ||
CF4 | ≤1.0%（RSD） | ||
dew point | ＜1% | ||
range | SF6 | 0～100% | |
N2 | 0～100% | ||
CF4 | 0～80% | ||
O2 | 0～1% | ||
dew point | -80 ℃~ + 20 ℃ (resistance and capacitance)/-60 ℃~ + 20 ℃ (mirror) | ||
Model | JH6000HQ3-S1 | resistance capacitance | |
JH6000HQ3-S2 | mirror | ||
